Ace
Ace x Pass~Port AF1 Hollow Skateboard Trucks
$140

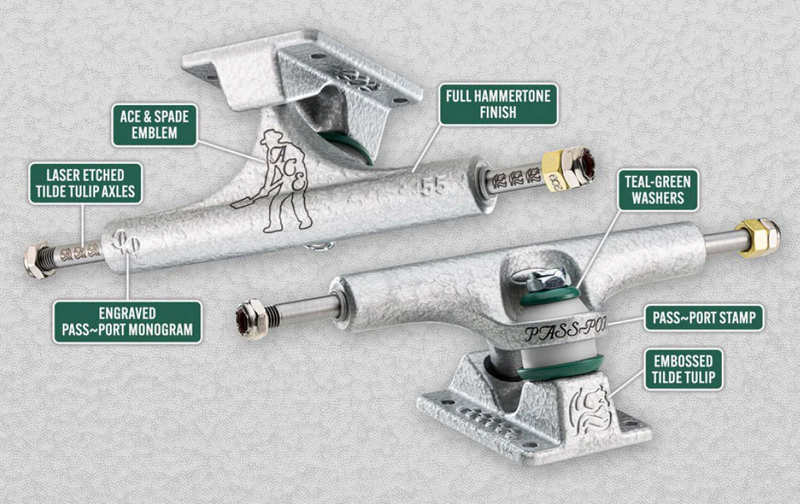

Ace x Pass~Port AF1 Hollow Skateboard Trucks in Hammertone finish

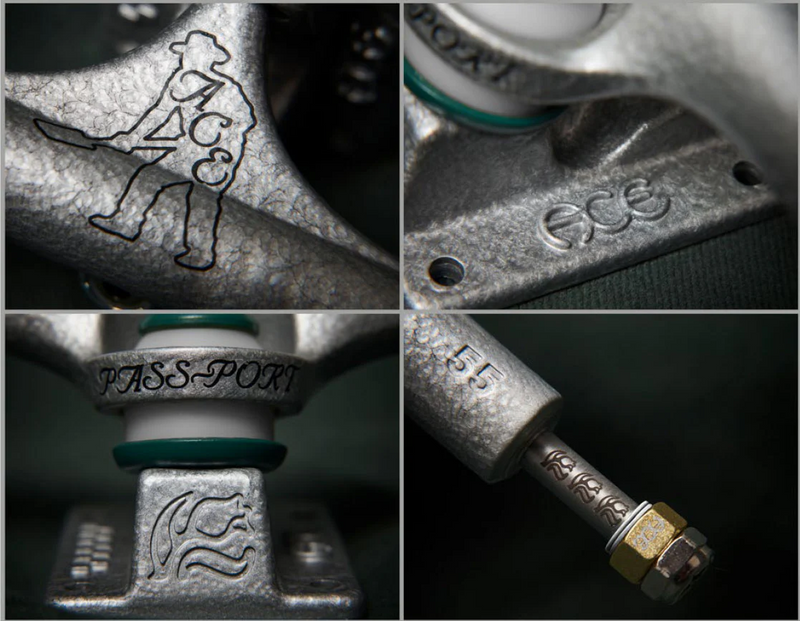

This limited edition Ace AF1 hollow truck comes in a full Hammertone finish, with special features including a Passport Spade emblem on hanger, Pass~Port stamp, embossed and laser etched tulips, as well as an engraved monogram.
Featuring colour up teal-green cup washers, the AF1 Hollow trucks feature re-threading axle nuts, hollow axles, hollow kingpins, hand poured 96A pivot cups, 91A top bushing, and 86A bottom bushings.
The AF1 is carefully manufactured using ACE's proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market.
| Deck Width | Truck Width |
| 7.75" - 8.0" | 22 |
| 8.0" - 8.25" | 33 |
| 8.25" - 8.5" | 44 |
| 8.5" - 8.75" | 55 |
| 8.75" - 9" | 60 |
| 9" - 9.6" | 66 |
| 9.6" - 10.0" | 77 |

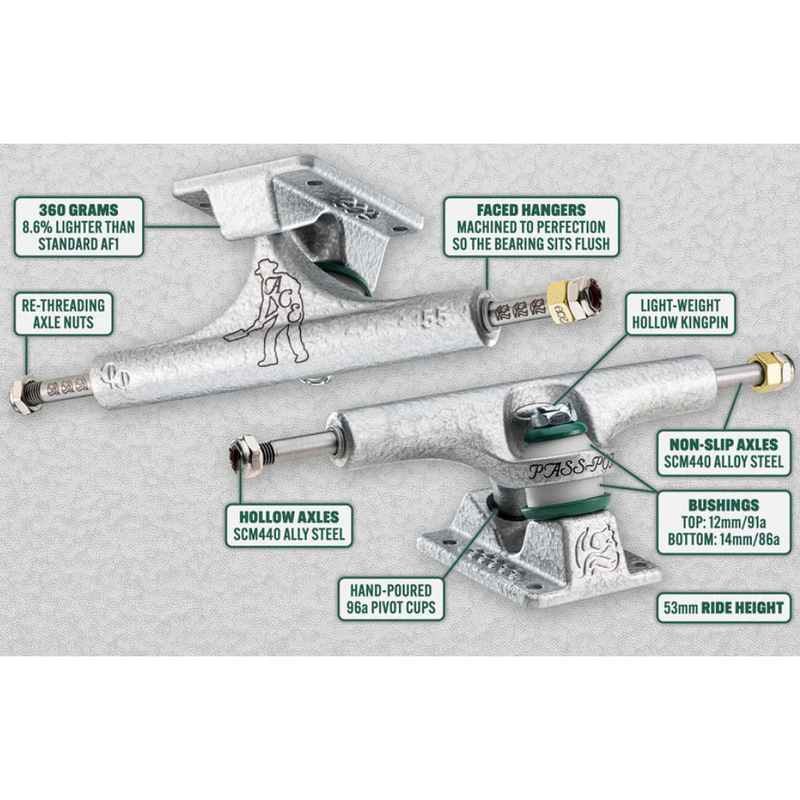

- 8.6% Lighter than standard AF1
- Hanger width: 5.6” (143mm)
- Truck height: 2.1” (53mm)
- Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
- True T6 heat-treated baseplates and hangers
- SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
- Patent pending rethreading axle nuts - no more damaged axle ends!
- Durable Hand-poured 96a urethane pivot bushings for better response.
- Refined suspension for a cleaner turn.
- Top Bushing: 12mm tall | 91a hardness
- Bottom Bushing: Bottom 14mm tall | 86a hardness
- Machine-faced hanger ends for precise bearing contact.
